This is a mini crawler - type dumper. Here is a detailed introduction and its advantages:

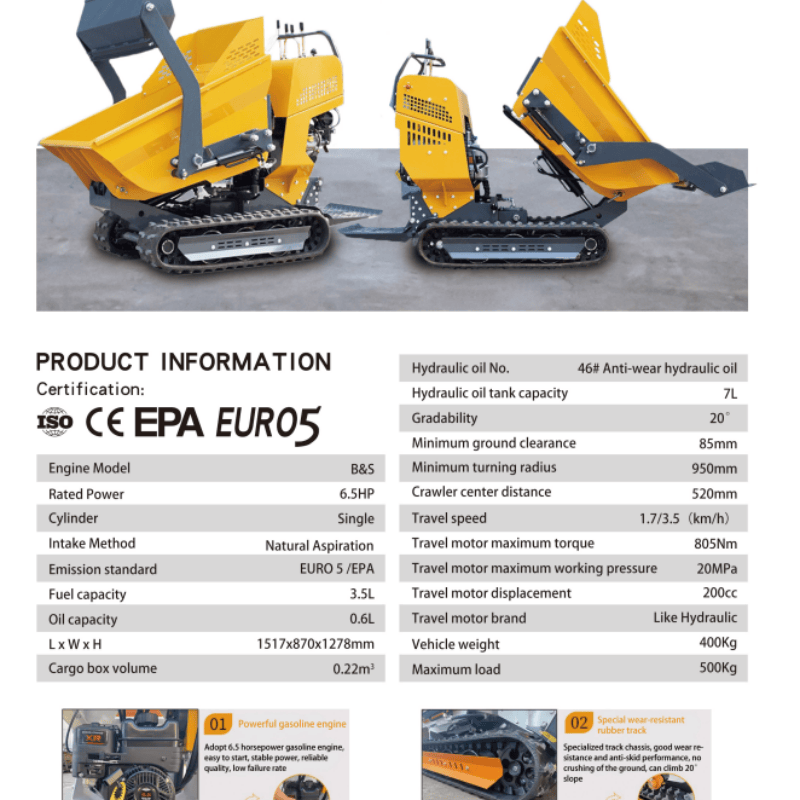

Basic Information
Certification: Certified by ISO, CE, EPA, and EURO5, indicating that it meets relevant international and European - American standards in terms of quality, safety, environmental protection, etc.
Power System: The engine model is B&S, with a rated power of 6.5HP, single - cylinder, and natural aspiration intake mode. The emissions meet the EURO 5/EPA standards, balancing power and environmental protection. The fuel capacity is 3.5L, and the oil capacity is 0.6L.
Dimensions: The length, width, and height are 1517×870×1278mm, and the cargo box volume is 0.22m³.
Hydraulic System: It uses 46# anti - wear hydraulic oil, and the hydraulic oil tank capacity is 7L.
Driving Performance: With a crawler - type design, the crawler center distance is 520mm, the minimum ground clearance is 85mm, the minimum turning radius is 950mm, the gradeability is 20°, the travel speed is 1.7/3.5 (km/h), the maximum torque of the travel motor is 805Nm, the maximum working pressure is 20MPa, the displacement is about 200cc, and the brand is Like Hydraulic. The vehicle weight is 400Kg, and the maximum load is 500Kg.
Powerful and Stable Power: Equipped with a 6.5 - horsepower gasoline engine, it has a stable power output, providing sufficient power for the vehicle's driving and material loading and unloading, meeting the needs of general small - scale engineering operations.
Environmental Compliance: The emissions meet the EURO 5/EPA standards, allowing it to be used in areas with strict environmental requirements and reducing environmental pollution.
In terms of Structural Design
Crawler Advantages: It adopts a special wear - resistant rubber crawler and a standardized crawler chassis, which has strong grip, causes little damage to the ground, can travel stably on soft ground such as grass and mud and rugged terrain, and can also climb a 20° slope.
Compact and Flexible: Its small size and a minimum turning radius of only 950mm enable it to turn, drive, and operate flexibly in narrow spaces such as indoors and alleys.
In terms of Loading and Operation
Considerable Loading Capacity: With a self - weight of 400Kg, a maximum load capacity of 500Kg, and a cargo box volume of 0.22m³, it can effectively complete the material transportation tasks in small - scale projects.
Reliable Hydraulics: The 46# anti - wear hydraulic oil and the corresponding hydraulic system configuration ensure the stability and durability of hydraulic actions, making operations such as dumper unloading smooth and reliable.
